Buy 1hp Bore Pump, Motor and Starter assembly

Assembly includes 4 inch submersible pump, motor & starter only.

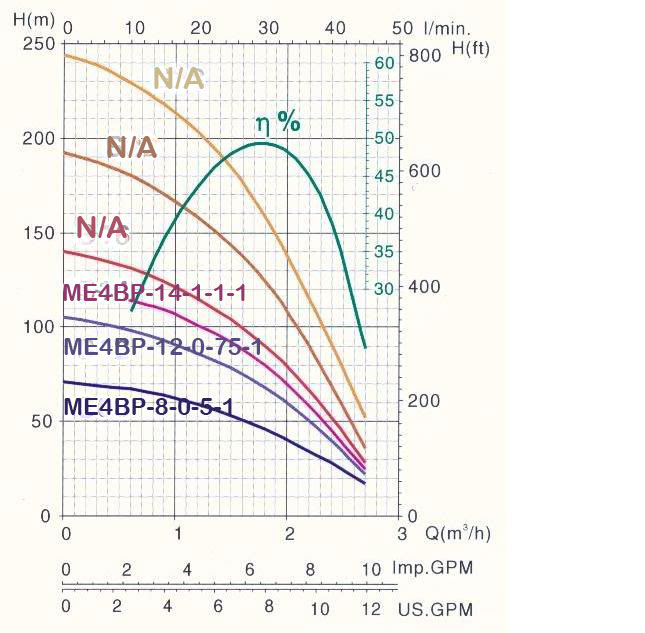

2m³/h flow ratings
42 liters per min / 0.7 liters per second @ 40m head
38 liters per min / 0.63 liters per second @ 50m head
36 liters per min / 0.6 liters per second @ 60m head
33 liters per min / 0.55 liters per second @ 70m head
30 liters per min / 0.5 liters per second @ 80m head
26 liters per min / 0.43 liters per second @ 90m head

This model has a 0.75kw/1hp 3-wire (4-core) single 1 phase motor.
Starter Box – 6.3A – 25ufd capacitor

The (optional) Automatic Control Box can be purchased separately.  As with the starter box, the Automatic Control Box contains the circuit breaker and capacitor.  However, it has the added feature of ‘water level monitoring’ probes.  These probes are installed down the bore with the pump and are wired into the control box. If there is not enough water, the system will shut down until the water level in the bore recovers and will allow the system to restart when the water level in the bore recovers. Handy if you don’t know the flow of the bore or have a low yielding bore.

There are other accessories that you will need to install your bore pump which include bore cap, drop cable, support cable, riser pipe, pressure gauge, etc. These are listed below.
Please be sure that your pump and accessory selection is correct before you purchase as the onus is on you. This is why I have included suggestions below with links, to ensure you select the correct size accessories for this model pump.

Options to purchase with your kit to suit this pump

Bore Cap
This model has a 1 1/4 (32mm) discharge thread, so if you are using 32mm pipe diameter then a 1.25” bore cap would be recommended.

Shroud Adapter
A shroud adapter is only needed if you are installing a 4 inch pump down 6 inch or larger casing.
If using 32mm pipe diameter then a 32 x 100mm (1 1/4 inch riser) PVC Shroud Adapter would be recommended.

Electrical Cable
The info below is a guide only, you must check with your electrician on cable size.
3-wire/4 core:

• 1.5mm sq cable up to 40m.
• 2.5mm sq cable up to 65m.
• 4mm sq up to 105m.

Always check with your electrician. He will do volt drop calculations to meet site requirements to comply with AS.

Stainless Steel Support Cable – Available in 3mm cable or 4mm cable

Stainless Steel Support Cable Grips/Clamps – Available in 3mm or 4mm to suit S/S Cable

Pressure Gauges Liquid Filled 63mm – Available in 0-800kPa, 0-1000kPa, 0-1600kPa and 0-2500kPa

Flexible Riser Pipe
– Series 100 is for depths up to 100. The sizes are 32mm and 50mm internal diameter.
– Series 200 is for depths up to 250m. The sizes range from 40mm to 200mm internal diameter.
– As well as the couplings, ties, joiners and installation roller.
